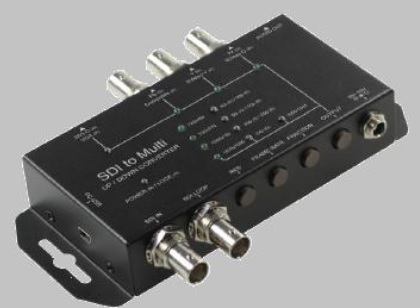

SDI2Multi | 廣播視聽器材

Description : Converts from 3G/HD/SD-SDI input to

DVI-D/VGA or Component/S-Video/Composite Video Output

Feature : Auto source format detection(3G/HD/SD)

Built-in Up/down conversion engine with anti-aliasing

Video Testing Pattern Generator

Simultaneous 1*DVI-I/Component/S-Video/Componsite and

2*SDI output

Splitter function

Re-clock function (for SDI output)

Hot-keys for video mode and device configurations

Mini-SUB port for configurations and software upgrade

Input Interface : SDI * 1

Output Interface : DVI-I * 1(convertible to VGA)

BNC * 3 for Component/S-Video/Composite

3.5mm Phone Jack for analog audio

SDI * 1 (Loop-through)

Supported Video : SDI

Intput Format 1080p 60/59.94/50/30/29.97/23.98/25/24, 1080i 60/50/59.94

720p 60/59.94/50, 525i, 625i

Supported Video : Composite / S-Video

Output Format NTSC / PAL

Component

480i, 576i, 480p, 576p, 720p, 1080i, 1080p

DVI / VGA

800*600@60Hz, 1024*768@60Hz, 1280*1024@60Hz

1366*768@60Hz, 1400*1050@60Hz, 1600*1200@60Hz

Audio Input Format : Up to 8 Channels, 24bit, 48KHz

Audio Output Format : Stereo, 16bit, 48KHz
